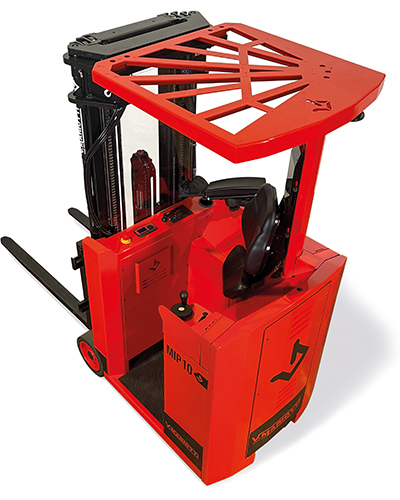

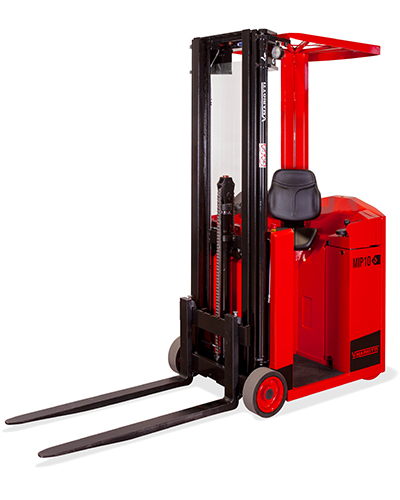

Compact and adaptable, the MIP is designed to tackle the trickiest handling and stacking needs, with a high residual capacity to ensure neat and tidy warehouses.

Ficha técnica
Capacidade (Q) kg 1000
Centro de gravidade (C) mm 600
Capacidade mín./máx. de elevação (h3) mm 1480 / 4480
Garfos de série (tipo / L x F x S) mm FEM IIA / 1150 x 80 x 40
Comprimento (L2) mm 1248
Largura exterior do carro (B) mm 858
Altura da cabine (h6) mm 1996
Tração   AC MOSFET
Peso em vazio (bateria incluída) kg de 2180
Bateria V/Ah 36/310
Estéreo   Elétrico
Deslocamento lateral   opcional
Curve Speed Control (CSC)   de série
Quick Change Mast (QCM)   -
Painel de instrumentos   Check panel
Rotativode segurança   de série
Sinalizador sonoro de marcha-atrás   de série
Faróis traseiros LED de segurança   opcional
Volante regulável   -
Assento super confortável   -
Apoios de cabeça comfort   -
Outros extras
  • Baterias de iões de Lítio
  • Faróis de trabalho a LED
  • Espelho retrovisor panorâmico


  • + Trouble-free maintenance

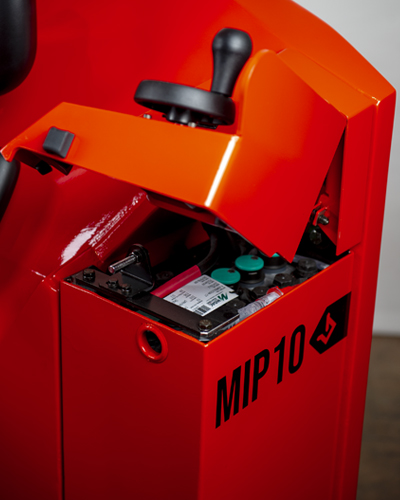

    All the truck’s components and batteries are within easy reach to make servicing fast and simple, minimizing maintenance time and costs.
  • + All under control

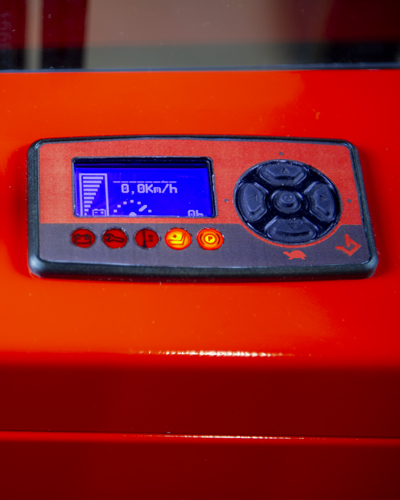

    The multi-function display keeps operators in control of battery levels, speed, and steering wheel position, and signals the presence of the operator when on board. A button directly on the display enables “turtle” mode to be engaged, which limits traction speed and acceleration for better manoeuvring in tight spaces.
  • + Easy to operate

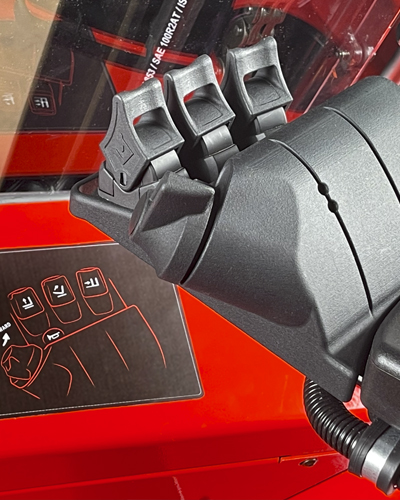

    The armrest is designed for comfortable and intuitive operation, with built-in controls for traction, the horn, and hydraulic operations:
    • load handling (up and down)
    • fork tilting (optional)
    • side shifting (optional)
  • + We stand by operators

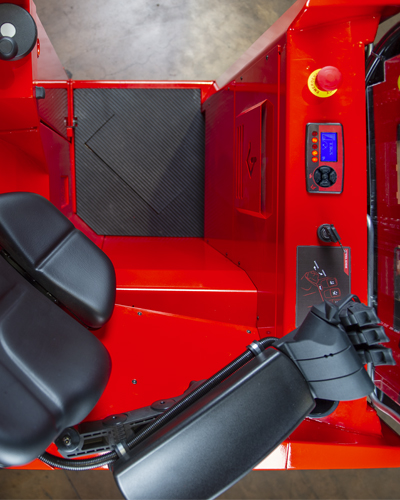

    The cabin is designed for ergonomic comfort and safety. From the height-adjustable and comfortable backrest to the controls, chassis, and glovebox, every detail is designed to make work easy for operators and guarantee their safety. The stand-up driving position to the side ensures maximum operating visibility and load control.
